R:使用GOplot对GO分析结果作图

安装

# Installation of the latest released version
install.packages('GOplot')
# Installation of the latest development version
install_github('wencke/wencke.github.io')

介绍

GOplot软件包专注于生物数据的可视化。更确切地说,该软件包将帮助把表达数据与功能分析的结果结合起来并加以整合。该软件包不能用来进行任何这些分析。它只用于可视化的目的。在所有的科学领域,我们将信息可视化以满足一个基本的需求–讲述一个故事。由于空间的限制和一般的需要,在大多数情况下,我们根本不可能真正讲一个故事。因此,我们使用视觉来传达信息。一个精心设计和制作的图形在一个比桌子小得多的空间里为观察者提供了高维度的信息。这个软件包的想法是为用户提供一些功能,允许快速检查大量的数据,暴露趋势,并在数据中找到模式和相关性。有效的数据可视化是决策过程中的一个重要工具,并有助于找到进一步的拼图,描绘出你的生物问题的答案。在此基础上,你将能够证实或证伪你的假设。你甚至可以依靠新的可视化提供的洞察力,开始寻找不同的方向来研究你的课题。该软件包的绘图功能是以分层结构为基础开发的;从总的概述开始,以选定的基因和术语的明确子集结束。

举例使用说明

GOplot带有一个手动编译的数据集。选定的样本从基因表达总库(accession number: GSE47067)下载。作为一个简短的总结,该数据集包含了来自两个稳态组织(大脑和心脏)的内皮细胞的转录组学信息。更详细的信息可以在Nolan等人2013年的论文中找到。数据被归一化,并进行了统计分析以确定差异表达的基因。使用DAVID功能注释工具对差异表达的基因集进行了基因注释富集分析(调整后的P值<0.05)。该数据集包含以下五个项目。

Name Description Dimension
EC$eset Data frame of normalized expression values of brain and heart endothelial cells (3 replicates) 20644 x 7
EC$genelist Data frame of differentially expressed genes (adjusted p-value < 0.05) 2039 x 7
EC$david Data frame of results from a functional analysis of the differentially expressed genes performed with DAVID 174 x 5
EC$genes Data frame of selected genes with logFC 37 x 2
EC$process Character vector of selected enriched biological processes 7

Getting started

As a first step we want to get an overview of the enriched GO terms of our differentially expressed genes. But before we start plotting we need to bring the data in the right format for the plotting functions. In general, the data object of the plotting functions can be created manually, but the package includes a function that does the job for you. The circle_dat function combines the result of the functional analysis with a list of selected genes and their logFC. Most likely a list of differentially expressed genes. circle_dat takes two data frames as an input. The first one contains the results of the functional analysis and should have at least four columns (category, term, genes, adjusted p-value). Additionally, a data frame of the selected genes and their logFC is needed. This data frame can be, for example, the result from a statistical analysis performed with limma. Let us have a look at the mentioned data frames.

library(GOplot)
# Load the dataset
data(EC)
# Get a glimpse of the data format of the results of the functional analysis...
head(EC$david)
##   Category         ID                             Term
## 1       BP GO:0007507                heart development
## 2       BP GO:0001944          vasculature development
## 3       BP GO:0001568         blood vessel development
## 4       BP GO:0048729             tissue morphogenesis
## 5       BP GO:0048514       blood vessel morphogenesis
## 6       BP GO:0051336 regulation of hydrolase activity
##                                                                                                                                                                                                                                                                                                                                                                              Genes
## 1       DLC1, NRP2, NRP1, EDN1, PDLIM3, GJA1, TTN, GJA5, ZIC3, TGFB2, CERKL, GATA6, COL4A3BP, GAB1, SEMA3C, MKL2, SLC22A5, MB, PTPRJ, RXRA, VANGL2, MYH6, TNNT2, HHEX, MURC, MIB1, FOXC2, FOXC1, ADAM19, MYL2, TCAP, EGLN1, SOX9, ITGB1, CHD7, HEXIM1, PKD2, NFATC4, PCSK5, ACTC1, TGFBR2, NF1, HSPG2, SMAD3, TBX1, TNNI3, CSRP3, FOXP1, KCNJ8, PLN, TSC2, ATP6V0A1, TGFBR3, HDAC9
## 2 GNA13, ACVRL1, NRP1, PGF, IL18, LEPR, EDN1, GJA1, FOXO1, GJA5, TGFB2, WARS, CERKL, APOE, CXCR4, ANG, SEMA3C, NOS2, MKL2, FGF2, RAPGEF1, PTPRJ, RECK, EFNB2, VASH1, PNPLA6, THY1, MIB1, NUS1, FOXC2, FOXC1, CAV1, CDH2, MEIS1, WT1, CDH5, PTK2, FBXW8, CHD7, PLCD1, PLXND1, FIGF, PPAP2B, MAP2K1, TBX4, TGFBR2, NF1, TBX1, TNNI3, LAMA4, MEOX2, ECSCR, HBEGF, AMOT, TGFBR3, HDAC7
## 3        GNA13, ACVRL1, NRP1, PGF, IL18, LEPR, EDN1, GJA1, FOXO1, GJA5, TGFB2, WARS, CERKL, APOE, CXCR4, ANG, SEMA3C, NOS2, MKL2, FGF2, RAPGEF1, PTPRJ, RECK, VASH1, PNPLA6, THY1, MIB1, NUS1, FOXC2, FOXC1, CAV1, CDH2, MEIS1, WT1, CDH5, PTK2, FBXW8, CHD7, PLCD1, PLXND1, FIGF, PPAP2B, MAP2K1, TBX4, TGFBR2, NF1, TBX1, TNNI3, LAMA4, MEOX2, ECSCR, HBEGF, AMOT, TGFBR3, HDAC7
## 4                                   DLC1, ENAH, NRP1, PGF, ZIC2, TGFB2, CD44, ILK, SEMA3C, RET, AR, RXRA, VANGL2, LEF1, TNNT2, HHEX, MIB1, NCOA3, FOXC2, FOXC1, TGFB1I1, WNT5A, COBL, BBS4, FGFR3, TNC, BMPR2, CTNND1, EGLN1, NR3C1, SOX9, TCF7L1, IGF1R, FOXQ1, MACF1, HOXA5, BCL2, PLXND1, CAR2, ACTC1, TBX4, SMAD3, FZD3, SHANK3, FZD6, HOXB4, FREM2, TSC2, ZIC5, TGFBR3, APAF1
## 5                                                                                            GNA13, CAV1, ACVRL1, NRP1, PGF, IL18, LEPR, EDN1, GJA1, CDH2, MEIS1, WT1, TGFB2, WARS, PTK2, CERKL, APOE, CXCR4, ANG, SEMA3C, PLCD1, NOS2, MKL2, PLXND1, FIGF, FGF2, PTPRJ, TGFBR2, TBX4, NF1, TBX1, TNNI3, PNPLA6, VASH1, THY1, NUS1, MEOX2, ECSCR, AMOT, HBEGF, FOXC2, FOXC1, HDAC7
## 6                                                                               CAV1, XIAP, AGFG1, ADORA2A, TNNC1, TBC1D9, LEPR, ABHD5, EDN1, ASAP2, ASAP3, SMAP1, TBC1D12, ANG, TBC1D14, MTCH1, TBC1D13, TBC1D4, TBC1D30, DHCR24, HIP1, VAV3, NOS1, NF1, MYH6, RICTOR, TBC1D22A, THY1, PLCE1, RNF7, NDEL1, CHML, IFT57, ACAP2, TSC2, ERN1, APAF1, ARAP3, ARAP2, ARAP1, HTR2A, F2R
##      adj_pval
## 1 0.000002170
## 2 0.000010400
## 3 0.000007620
## 4 0.000119000
## 5 0.000720000
## 6 0.001171166
# ...and of the data frame of selected genes
head(EC$genelist)
##        ID    logFC   AveExpr        t  P.Value adj.P.Val        B
## 1 Slco1a4 6.645388 1.2168670 88.65515 1.32e-18  2.73e-14 29.02715
## 2 Slc19a3 6.281525 1.1600468 69.95094 2.41e-17  2.49e-13 27.62917
## 3     Ddc 4.483338 0.8365231 65.57836 5.31e-17  3.65e-13 27.18476
## 4 Slco1c1 6.469384 1.3558865 59.87613 1.62e-16  8.34e-13 26.51242
## 5  Sema3c 5.515630 2.3252117 58.53141 2.14e-16  8.81e-13 26.33626
## 6 Slc38a3 4.761755 0.9218670 54.11559 5.58e-16  1.76e-12 25.70308

Now, that we know what the input data looks like it’s time to use the cirlce_dat function to create the plotting object.

# Generate the plotting object
circ <- circle_dat(EC$david, EC$genelist)

The circ object has eight columns with the following names:

  1. category
  2. ID
  3. term
  4. count
  5. gene
  6. logFC
  7. adj_pval
  8. zscore

Since most of the gene- annotation enrichment analysis are based on the gene ontology database the package was build with this structure in mind, but is not restricted to it. As explained by Ashburner et al. in their paper from the year 2000, gene ontology is structured as an acyclic graph and it provides terms covering different areas. These terms are grouped into three independent categories: BP (biological process), CC (cellular component) or MF (molecular function). The first column of the circ object contains this information, which was already given in the input. For more information on the structure of gene ontology, have a look at the documentation section of the gene ontology consortium website. All the terms from inside the gene ontology database come with a GO ID and a GO term description. The ID column of the circ object is optional. So in case you want to use a functional analysis tool that is not based on gene ontology you won’t have an ID column. The term description column does contain just that: a description of the term and the performance of the implemented functions does not depend on possible resemblance with gene ontology terms. Count is the number of genes assigned to a term. Gene names and their logFC are taken from the input list of selected genes. The significance of a term is indicated by the adjusted p-value (adj_pval). Terms with an adjusted p-value < 0.05 are considered as significantly enriched and are more likely to provide reliable information. The last column contains the zscore. This z-score does not refer to the standard score from statistics, but is an easy to calculate value to give you a hint if the biological process (/molecular function/cellular components) is more likely to be decreased (negative value) or increased (positive value). It is calculated as follows:

zscore=(updown)count

Whereas up and down are the number of assigned genes up-regulated (logFC>0) in the data or down- regulated (logFC<0), respectively.

The plots

The modified barplot (GOBar)

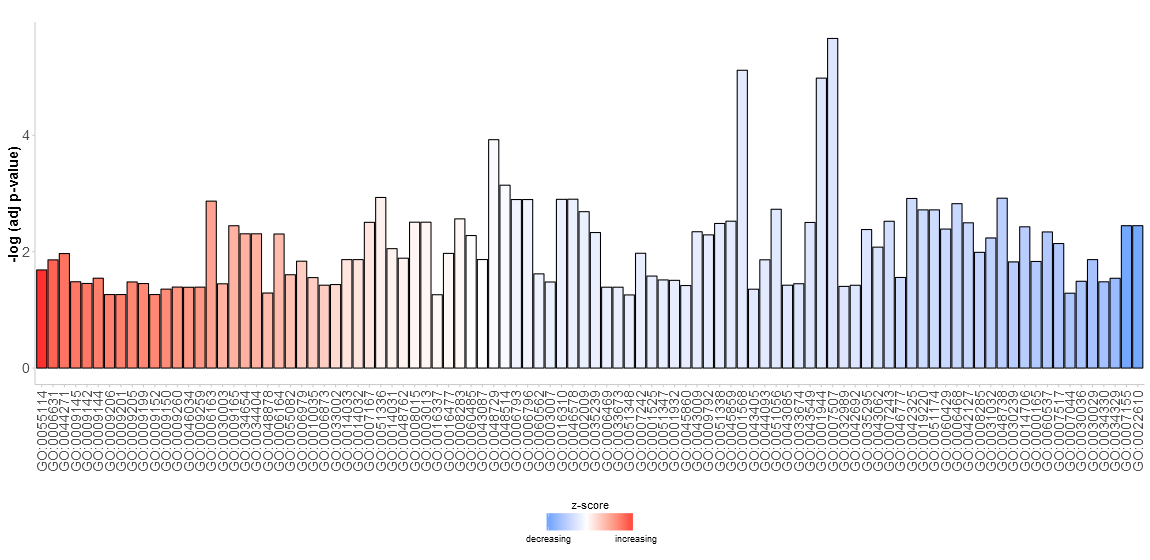

Go to topSince we do not really know what to expect from our data the aim of the first figure should be to display as many terms as possible without going too much into details. Nevertheless, the figure shall help us to pick the interesting and valuable terms. Therefore, we need to have some parameters to quantify the importance. Since the majority of scientific sampled data is plotted using bar charts a modified version of the normal barplot function, named GOBar, is included. The GOBarfunction allows the user to quickly create an appealing barplot.

# Generate a simple barplot
GOBar(subset(circ, category == 'BP'))

GOBar

On the y-axis the significance of the terms is shown and the bars are ordered according to their z-score. If you want, you can change the order by setting the argument order.by.zscore to FALSE. In this case the bars are ordered based on their significance. Additionally, the barplot can be easily faceted according to the categories of the terms using the argument display of the plotting function (output not shown).

# Facet the barplot according to the categories of the terms
GOBar(circ, display = 'multiple')

To add a title use title and to change the colour scale of the z-score use the argument zsc.col (output not shown).

# Facet the barplot, add a title and change the colour scale for the z-score
GOBar(circ, display = 'multiple', title = 'Z-score coloured barplot', zsc.col = c('yellow', 'black', 'cyan'))

Barplots are common and very easy to read, but they might not be the absolute solution. Another possibility to display an overview for high- dimensional data is the bubble plot.

The bubble plot (GOBubble)

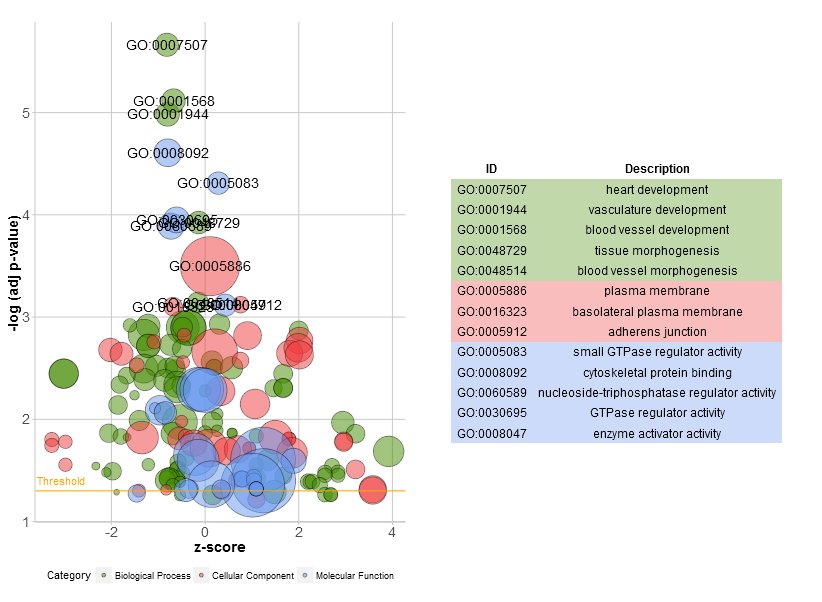

Go to topThe bubble plot is another possibility to get an overview of the enriched terms. The z-score is assigned to the x-axis and the negative logarithm of the adjusted p-value to the y-axis, as in the barplot (the higher the more significant). The area of the displayed circles is proportional to the number of genes (circ$count) assigned to the term and the colour corresponds to the category. The help page of the plotting function (?GOBubble) lists all the arguments to change the layout of the plot. As a default the circles are labeled with the term ID. Therefore, a table connecting the IDs and terms is displayed on the right side by default. You can hide it by setting the argument table.legend to FALSE. If you want to display the term description instead set the argument ID to FALSE. Not all the circles are labeld due to the limited space and the overlap of the circles. A threshold for the labeling is set (default=5) based on the negative logarithm of the adjusted p-value.

# Generate the bubble plot with a label threshold of 3
GOBubble(circ, labels = 3)

GOBubble1

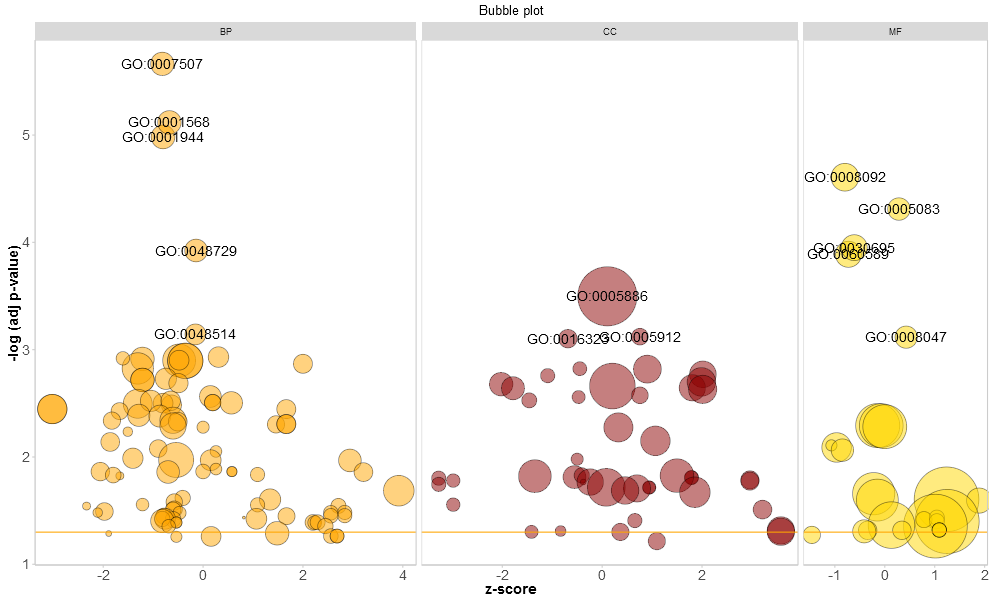

To add a title, change the colour of the circles, facet the plot and to change the label threshold use the following arguments:

# Add a title, change the colour of the circles, facet the plot according to the categories and change the label threshold
GOBubble(circ, title = 'Bubble plot', colour = c('orange', 'darkred', 'gold'), display = 'multiple', labels = 3)

GOBubble2

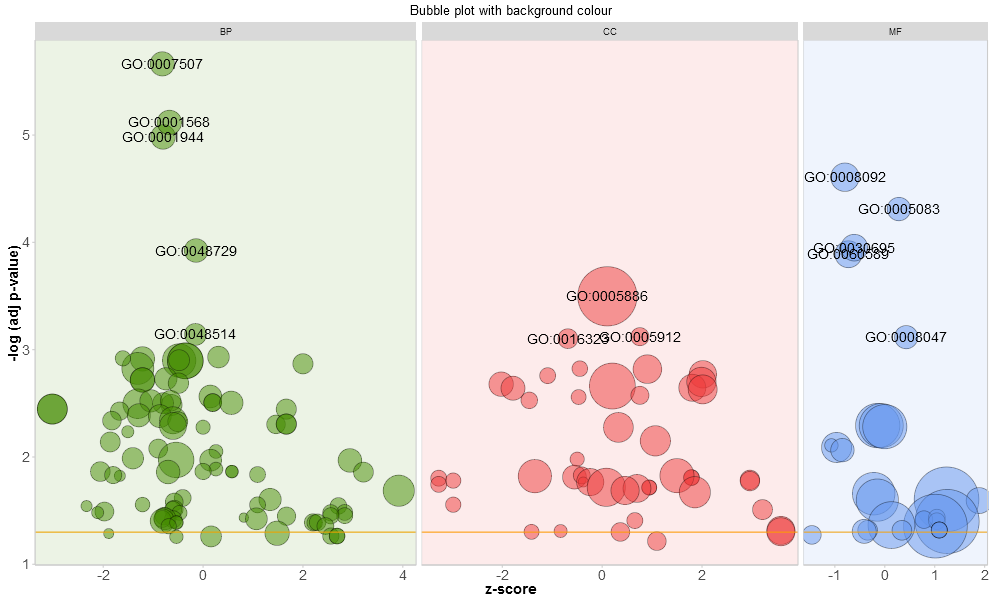

For the facet plot it is also possible to colour the background of the panels according to the displayed category by setting bg.col to TRUE.

# Colour the background according to the category
GOBubble(circ, title = 'Bubble plot with background colour', display = 'multiple', bg.col = T, labels = 3)

GOBubble3

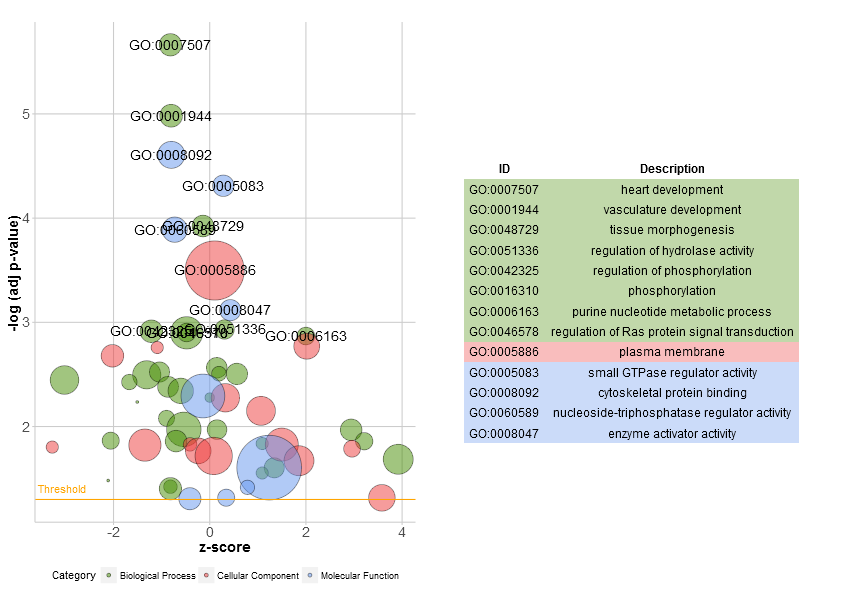

A new function, reduce_overlap, was included in the updated version of the package to reduce the number of redundant terms. So far, the implemented method is very simple + slow and needs further refinement. Nevertheless, by reducing the number of redundant terms the readability of plots, like the bubble plot, improves significantly. The function deletes all terms that have a gene overlap greater than or equal to a set threshold. The function keeps one term per group as a representative without taking into consideration the GO hierarchy.

# Reduce redundant terms with a gene overlap >= 0.75...
reduced_circ <- reduce_overlap(circ, overlap = 0.75)
# ...and plot it
GOBubble(reduced_circ, labels = 2.8)

GOBubble4

Circular visualization of the results of gene- annotation enrichment analysis (GOCircle)

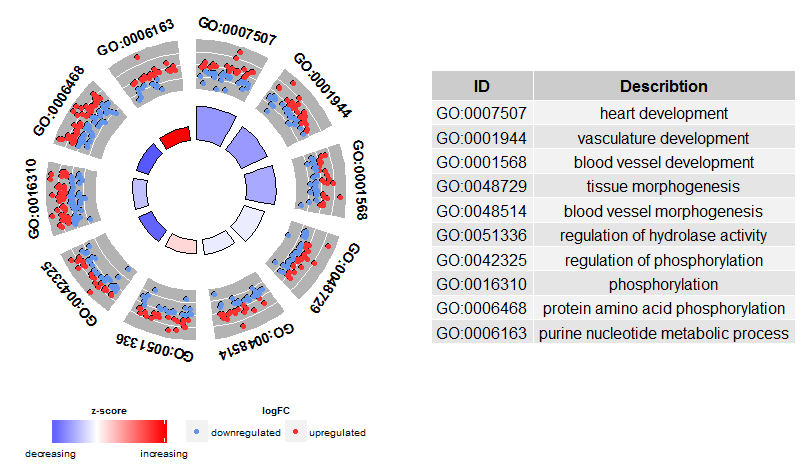

Go to topThe overview plots shall help to decide which of the terms are the most interesting to us. Of course, this decision depends although on the hypothesis and ideas you want to confirm with your data. Not always are the most significant terms the ones you are interested in. So, after manually selecting a set of valuable terms (EC$process) the next figure should provide us with more details on this specific terms. One of the major issues we figured out by presenting the plots was: it was sometimes difficult to interpret the information the z-score provides. Since the measure is not that common. As shown above it is simply the number of up- regulated genes minus the number of down- regulated genes divided by the square root of the count. The GOCircle plot emphasizes this fact.

#Generate a circular visualization of the results of gene- annotation enrichment analysis
GOCircle(circ)

GOCirc

The outer circle shows a scatter plot for each term of the logFC of the assigned genes. Red circles display up- regulation and blue ones down- regulation by default. The colours can be changed with the argument lfc.col. Therefore, it is easier to understand, why in some cases highly significant terms have a z-score close to zero. A z-score of zero does not mean that the term is not important. At least not as long as it is significantly enriched. It just shows that the z-score is a crude measure, because obviously the score does not take into account the functional level and activation dependencies of the single genes within a process. You can change the layout of the plot with various arguments, see ?GOCirlce.The nsubargument needs a little bit more explanation to be used wisely. First of all, it can be a numeric or a character vector. If it is a character vector then it contains the IDs or term descriptions of the processes you want to display (output not shown).

# Generate a circular visualization of selected terms
IDs <- c('GO:0007507', 'GO:0001568', 'GO:0001944', 'GO:0048729', 'GO:0048514', 'GO:0005886', 'GO:0008092', 'GO:0008047')
GOCircle(circ, nsub = IDs)

If nsub is a numeric vector then the number defines how many terms are displayed. It starts with the first row of the input data frame (output not shown).

# Generate a circular visualization for 10 terms
GOCircle(circ, nsub = 10)

This kind of visualization is only useful for a smaller set of terms. The maximum number of terms lies around 12. While the number of terms decreases the amount of displayed information increases.

Display of the relationship between genes and terms (GOChord)

Go to topBased on the Circos plots designed by Martin Krzywinski the GOChord plotting function was implemented. It displays the relationship between a list of selected genes and terms, as well as the logFC of the genes. As an input a binary membership matrix is necessary. You can build the matrix on your own or you use the implemented function chord_dat which does the job for you. The function takes three arguments: data, genes and process, of which from the last two only one is mandatory. So, the circle_dat combined your expression data with the results from the functional analysis. The bar and bubble plot allowed you to get a first impression of your data and now, you selected a list of genes and processes you think are valuable. GOCircle adds a layer to display the expression values of the genes assigned to the terms, but it lacks the information of the relationship between the genes and the terms. It is not easy to figure out if some of the genes are linked to multiple processes. The chord plot fills the void left by GOCircle.

# Define a list of genes which you think are interesting to look at. The item EC$genes of the toy
# sample contains the data frame of selected genes and their logFC. Have a look...
head(EC$genes)
##      ID      logFC
## 1  PTK2 -0.6527904
## 2 GNA13  0.3711599
## 3  LEPR  2.6539788
## 4  APOE  0.8698346
## 5 CXCR4 -2.5647537
## 6  RECK  3.6926860
# Since we have a lot of significantly enriched processes we selected some specific ones (EC$process)
EC$process
## [1] "heart development"        "phosphorylation"
## [3] "vasculature development"  "blood vessel development"
## [5] "tissue morphogenesis"     "cell adhesion"
## [7] "plasma membrane"
# Now it is time to generate the binary matrix
chord <- chord_dat(circ, EC$genes, EC$process)
head(chord)
##       heart development phosphorylation vasculature development
## PTK2                  0               1                       1
## GNA13                 0               0                       1
## LEPR                  0               0                       1
## APOE                  0               0                       1
## CXCR4                 0               0                       1
## RECK                  0               0                       1
##       blood vessel development tissue morphogenesis cell adhesion
## PTK2                         1                    0             0
## GNA13                        1                    0             0
## LEPR                         1                    0             0
## APOE                         1                    0             0
## CXCR4                        1                    0             0
## RECK                         1                    0             0
##       plasma membrane      logFC
## PTK2                1 -0.6527904
## GNA13               1  0.3711599
## LEPR                1  2.6539788
## APOE                1  0.8698346
## CXCR4               1 -2.5647537
## RECK                1  3.6926860

Rows are genes and columns are terms. A ‘0’ indicates that the gene is not assigned to the term; a ‘1’ the opposite. As mentioned before it is possible to leave either the genes or the process argument out. If you pass on the processargument the binary matrix is build for the list of selected genes and all the processes with at least one assigned gene. On the other hand, if you just provide a set of processes without limiting the list of genes, the binary matrix is generated for all the genes which are assigned to at least one of the processes from your list (output not shown).

# Generate the matrix with a list of selected genes
chord <- chord_dat(data = circ, genes = EC$genes)
# Generate the matrix with selected processes
chord <- chord_dat(data = circ, process = EC$process)

Be aware that a pass on either genes or process might lead to a large binary matrix which results in a confusing visualization. The chart was designed for smaller subsets of high-dimensional data. Like the other plotting functions GOChordprovides the user with a lot of arguments to change the layout of the plot, see ?GOChord. Most of the arguments address the adjustment of the font size of the labels, the space between them, the colour scale for the logFC and the colour of the ribbons. Despite the asthetics there are two other arguments: gene.order and nlfc. The first argument defines the order of the genes with the three possible options: ‘logFC’, ‘alphabetical’, ‘none’. Actually the options are quite self- explanatory. The nlfc parameter is one of the most import ones of the function, because it states how many logFC values per gene are present in the matrix. You should always use the argument to avoid errors. For example, if you have a matrix without any logFC values you have to set nlfc = 0. Sometimes you are performing the differential expression analysis for multiple conditions and/or batches. Therefore, you want to include more than one logFC value per gene. To adjust to this situation you should set nlfc to the correct number of logFC columns. The default is ‘1’ assuming that most of the time you just have one contrast and one logFC value per gene.

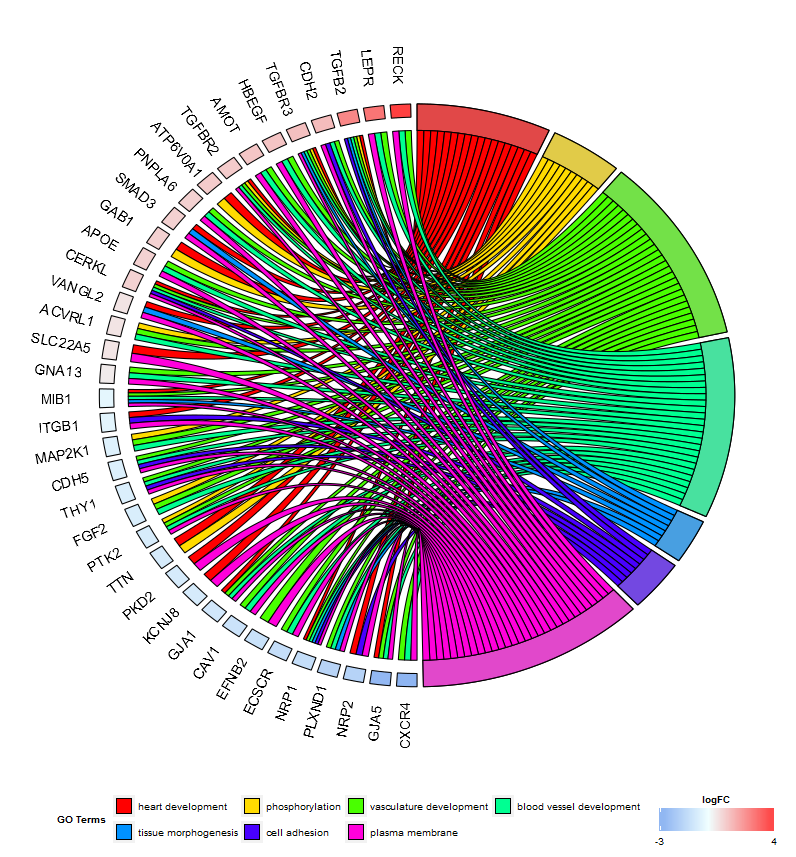

# Create the plot
chord <- chord_dat(data = circ, genes = EC$genes, process = EC$process)
GOChord(chord, space = 0.02, gene.order = 'logFC', gene.space = 0.25, gene.size = 5)

GOChord1

The space argument defines the space between the coloured rectangles representing the logFC. Also the font size of the gene labels (gene.size) and the space (gene.space) between them was changed. The genes were ordered according to their logFC values setting gene.order to ‘logFC’.

Sometimes the plot gets a bit crowded and you would like to reduce the number of displayed genes or processes. You can do this automatically by making use of the limit argument. Limit is a vector with two cutoff values (default = c(0, 0)). The first value defines the minimum (>=) number of terms a gene has to be assigned to. The second value determines the number of genes assigned to a selected term. For example, to display only genes which are assigned to at least three processes you would use the following line of code (output not shown):

# Display only genes which are assigned to at least three processes
GOChord(chord, limit = c(3, 0), gene.order = 'logFC')

Heatmap of genes and terms (GOHeat)

Go to topThanks to a very nice suggestion from Maureen Sartor, Ph.D. I implemented GOHeat. The GOHeat function generates a heatmap of the relationship between genes and terms similar to GOChord. Biological processes are displayed in rows and genes in columns. Each column is divided into smaller rectangles and the colouring of the tiles depends on the presence or abscence of logFC values. In addition genes are clustered to highlight groups of genes with similar annotated functions. Basically the function has two modes depending on the nlfc argument. If nlfc = 0, so no logFC values are available, the colouring encodes for the overall number of processes the respective gene is assigned to. Let’s have a look at an example…

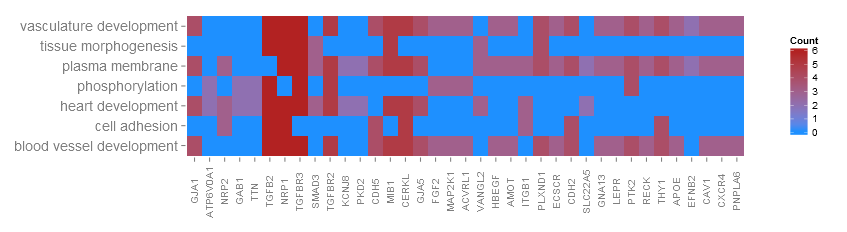

# First, we use the chord object without logFC column to create the heatmap
GOHeat(chord[,-8], nlfc = 0)

GOHeat_nolfc

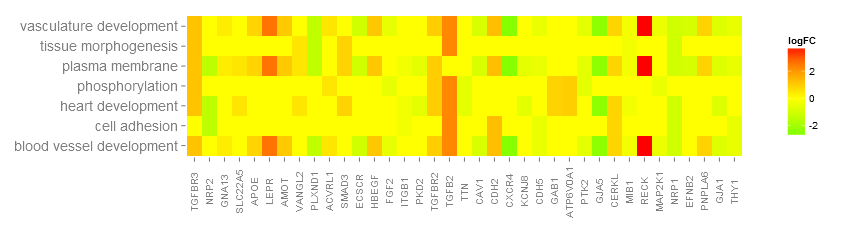

In case of nlfc = 1 the colour corresponds to the logFC of the gene…

# Now we create the heatmap with logFC values and user-defined colour scale
GOHeat(chord, nlfc = 1, fill.col = c('red', 'yellow', 'green'))

GOHeat_lfc

Golden eye (GOCluster)

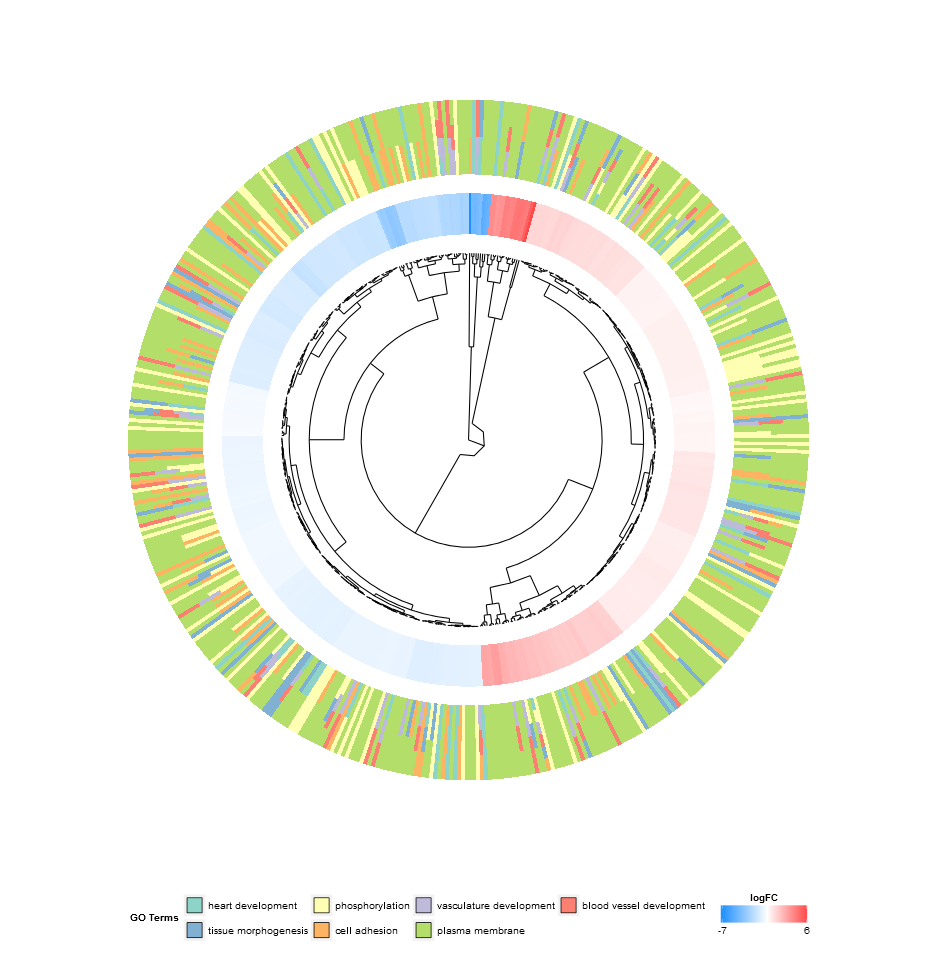

Go to topThe idea behind the GOCluster function is to visualize as much information as possible. Here is an example:

GOCluster(circ, EC$process, clust.by = 'logFC', term.width = 2)

GOCluster

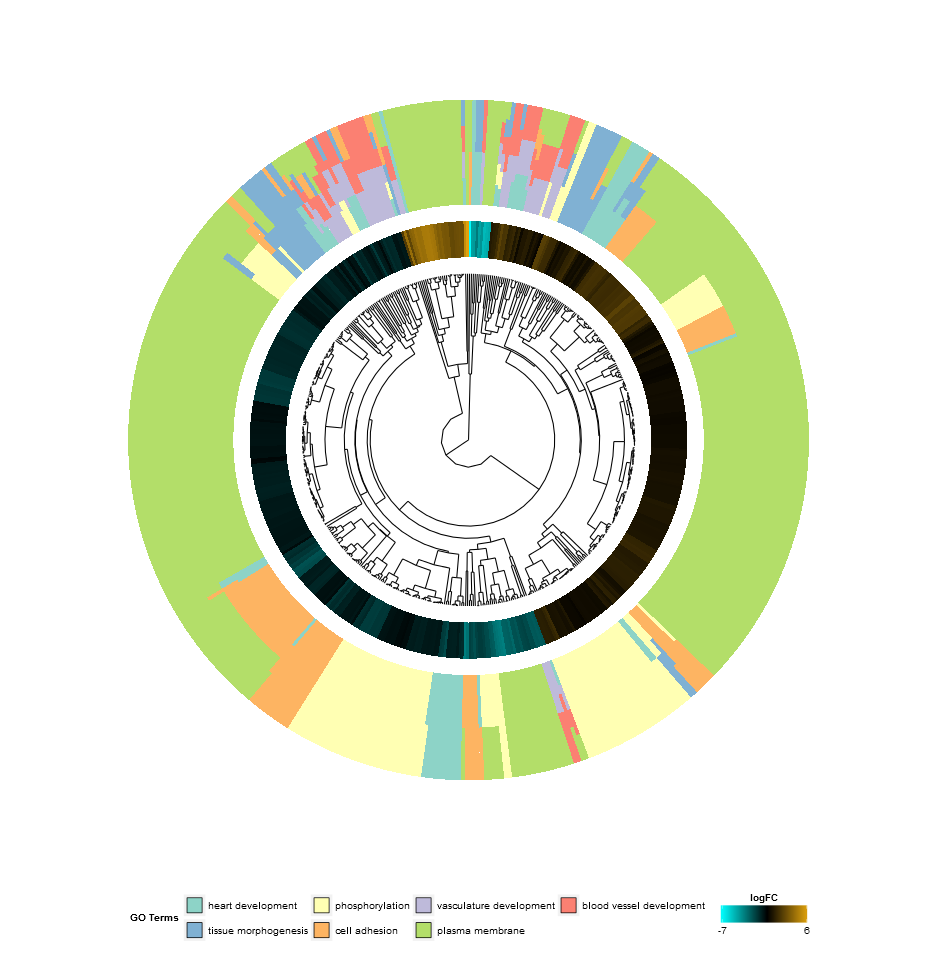

Hierarchical clustering is a popular method for gene expression analysis due to its unsupervised nature assuring an unbiased result. Genes are grouped together based on their expression patterns, thus clusters are likely to contain sets of co-regulated or functionally related genes. GOCluster performs the hierarchical clustering of the gene expression profiles using the hclust method in core R. If you want to change the distance metric or the clustering algorithm use the arguments metric and clust, respectively. The resulting dendrogram is transformed with the help of ggdendro to be suitable for a visualization with ggplot2. As before a circular layout was chosen, because it is not only effective but also visually appealing. The first ring next to the dendrogram represents the logFC of the genes, which are actually the leaves of the clustering tree. In case you are interested in more than one contrast the nlfc argument is also available for this function. By default it is set to ‘1’, so only one ring is drawn. Like always the logFC values are colour- coded with an user- definable colour scale (lfc.col). The next ring represents the terms assigned to the genes. For aesthetic reasons the terms should be reduced to a reasonable number with the argument process. The terms are colour- coded as well and you can change the default colours by using the argument term.col. Once again, the plotting function provides you with a bunch of arguments to change the layout of the plot and you can check them out on the help page, ?GOCluster. Probably the most important argument of the function is clust.by. It expects a character vector specifying if the clustering should be done for gene expression pattern (‘logFC’, as in the figure above) or functional categories (‘terms’).

GOCluster(circ, EC$process, clust.by = 'term', lfc.col = c('darkgoldenrod1', 'black', 'cyan1'))

GOCluster2

Venn diagram (GOVenn)

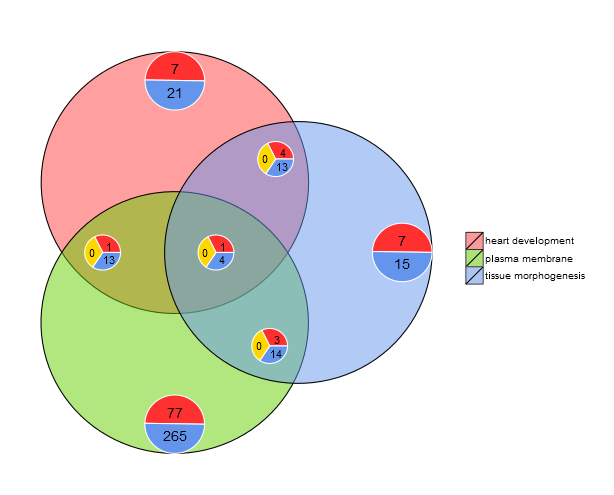

Go to topIn this biological context we implemented a Venn diagram that can be used to detect relations between various lists of differentially expressed genes or to explore the intersection of genes of multiple terms from the functional analysis. The Venn diagram does not only display the number of overlap genes, but it also displays the information about the gene expression patterns (commonly up- regulated, commonly down- regulated or contra- regulated). At the moment, maximal three datasets are aloud as an input. The input data frame contains at least two columns: one for the gene names and one for the logFC value.

l1 <- subset(circ, term == 'heart development', c(genes,logFC))
l2 <- subset(circ, term == 'plasma membrane', c(genes,logFC))
l3 <- subset(circ, term == 'tissue morphogenesis', c(genes,logFC))
GOVenn(l1,l2,l3, label = c('heart development', 'plasma membrane', 'tissue morphogenesis'))

GOVenn

For example, heart development and tissue morphogenesis share a set of 22 genes, whereas 5 are commonly up-regulated and 17 are commonly down-regulated. The important thing to notice is, that the pie charts don’t display redundant information. Thus, if you compare three datasets the genes which are shared by all datasets (pie chart in the middle) are not included in the other pie charts. The following link refers to the shinyapp of this tool. The web tool is slightly more interactive since the circles are area-proportional to the number of genes of the dataset and the small pie charts can be moved with sliders. It has also all the other options of the GOVenn function to change the layout of the plot. You can easily download the picture and gene lists.
